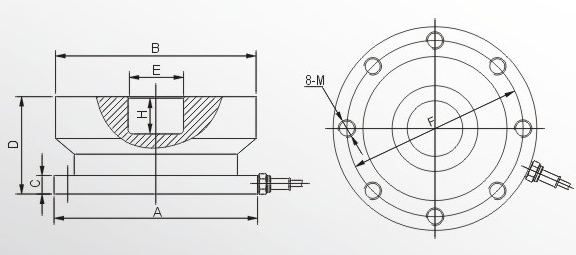

量程 |
尺寸mm |
|||||||
|
Klb |
A |
B |
C |
D |
E |
F |
H |
M |
|
50 |
140.0 |
137.5 |
12.8 |
63.5 |
38.2 |
121.0 |
25.5 |
7/16-20 |
|
100 |
140.0 |
137.5 |
12.8 |
66.8 |
38.2 |
121.0 |
28.5 |
7/16-20 |
|
主 要 技 術 指 標Main Description |
||
|
測量范圍Capacity |
0.5~15、30 |
kg |
|
輸出靈敏度Rated Output |
2.0±0.010 |
mV/V |
|
非線性Linear |
±0.05 |
%F.S |
|
滯后Hysteresis |
±0.05 |
%F.S |
|
重復性Reapeatability |
±0.03 |
%F.S |
|
蠕變Creep |
±0.02 |
%F.S |
|
零點輸出Zero Balance |
≤±1.0 |
%F.S |
|
溫度補償范圍 Conpensated Temperature Range |
室溫～+60 |
℃ |
|
零點溫度補償系數Temperature Effect On Zero |
±0.02 |
%F.S/10 ℃ |
|
額定輸出溫度系數 Temperature Effect On Output |
±0.02 |
%F.S/10 ℃ |
|
供橋電壓 Excitation Voltage |
10V |
AC/DC |
|
絕緣電阻Insulation Resistence |
≥5000 |
MΩ/100VDC |
|
輸入電阻 Input Resistence |
750±10 |
Ω |
|
輸出電阻Output Resistence |
700±5 |
Ω |
|
允許過載系數Safe Overload |
120 |
%F.S |
|
電纜連接方式Cable Connection |
信號輸出Singal Output： 黃:Yellow (+) 黑:Black (－) |
|
|
供橋電壓Excitation Voltage： 紅Red: (+) 綠Green：（－） |
||
